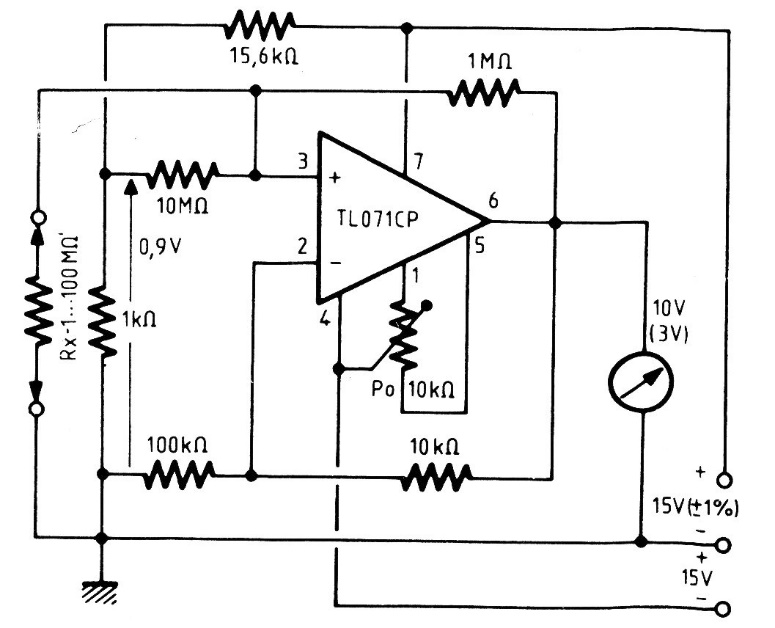

With the presented circuit it is possible to measure resistances of many megohms using a low voltage scale of a common multimeter. The circuit is from a French documentation from 1982. The power supply must be symmetrical.
