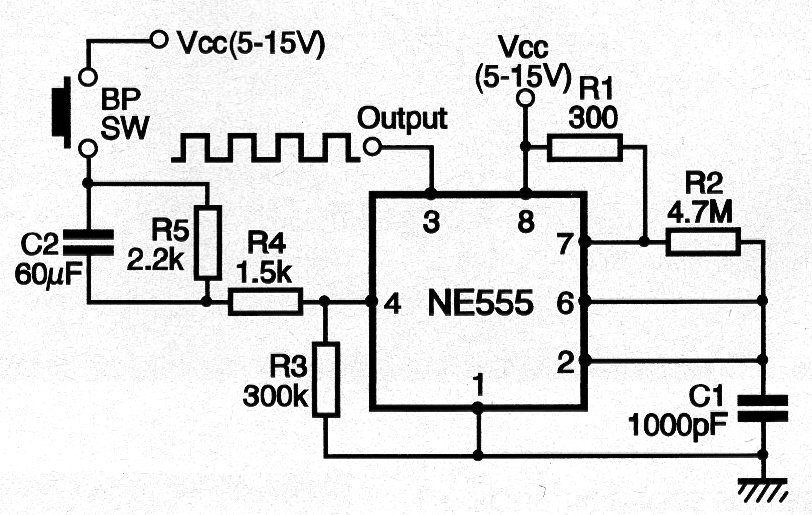

This circuit generates pulses whose frequency depends on C1. The circuit can be powered by voltages from 5 to 15 V. We find this configuration in a Signetics manual.
| Clique na imagem para ampliar |
Pulse Generator 555 (CB15025E)
- Details
- Written by: Newton C. Braga
