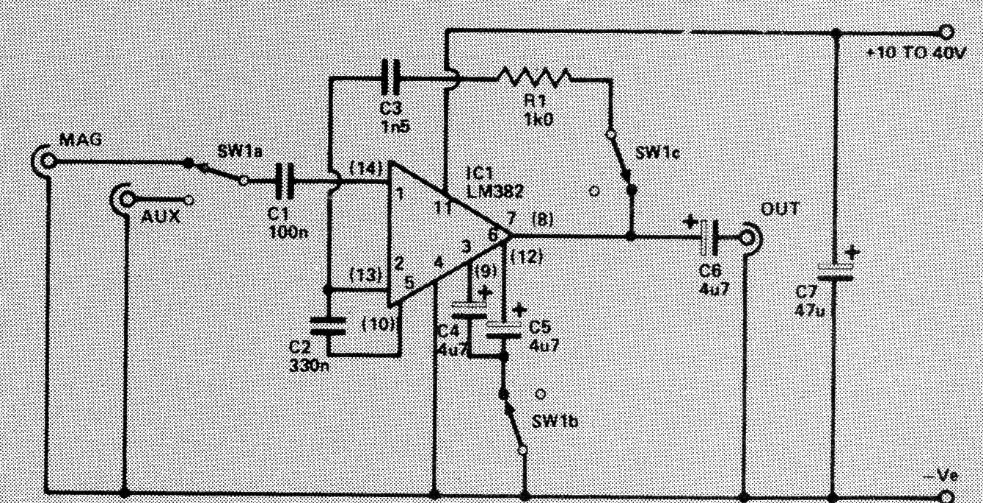

This is the traditional audio preamp configuration with the National Semiconductor LM382. The circuit has good gain and can be used with magnetic pickups or from signals from an auxiliary input.
| Clique na imagem para ampliar |
LM382 Preamplifier (CB15083E)
