Broadband IR Receiver TDA3047 (CB15396E)

Details
Written by: Newton C. Braga

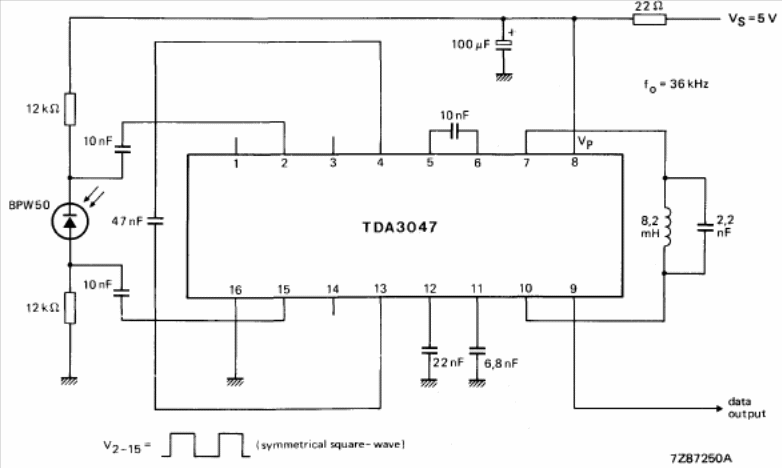

This receiver for infrared remote control was found in the Philips Databook of 1990, The circuit operates with 5 V and is intended for receiving data.




| Clique na imagem para ampliar |
