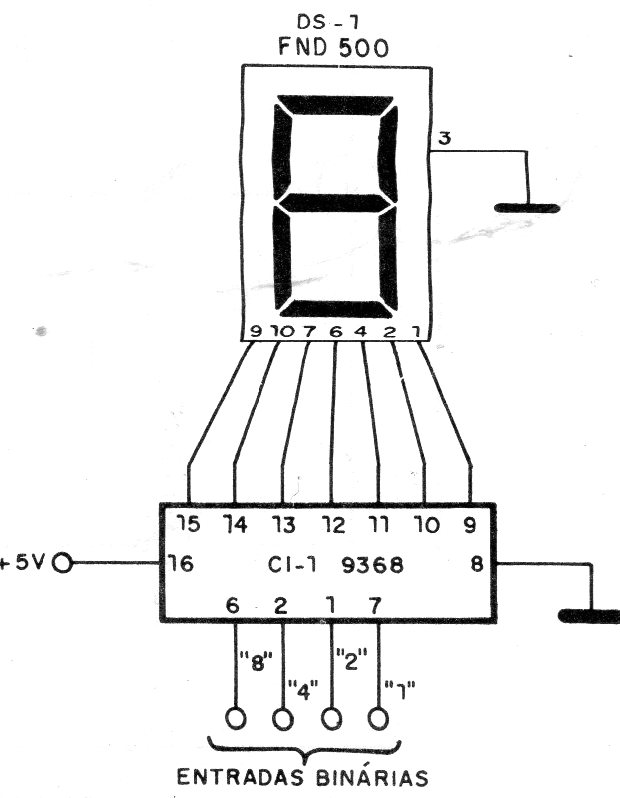

This simple circuit shows how you use a TTL to decode logic levels from a BCD output to drive a 7-segment common cathode display. The integrated circuit used already has current limiters. The display is common cathode.
7 Segment BCD Decoder (CB16457E)
- Details
- Written by: Newton C. Braga
