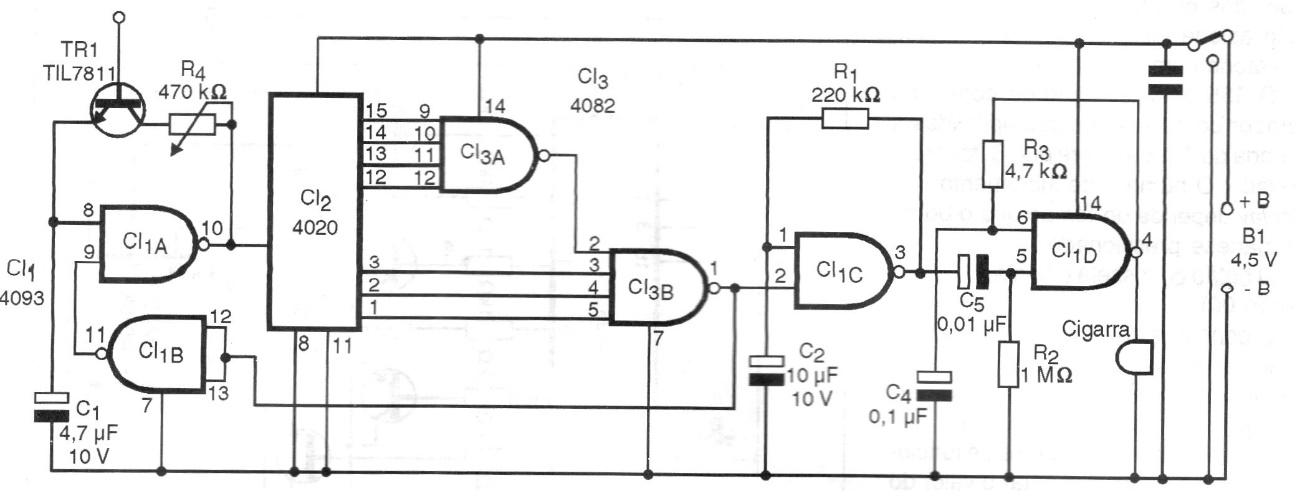

I found this circuit in a 1998 publication, but as all components are common, it can be easily assembled today. The circuit is powered by 3 batteries and provides an audible indication at the end of the programmed time. The time is programmed by touching a 4020. The beep can be a small buzzer with an oscillator.
