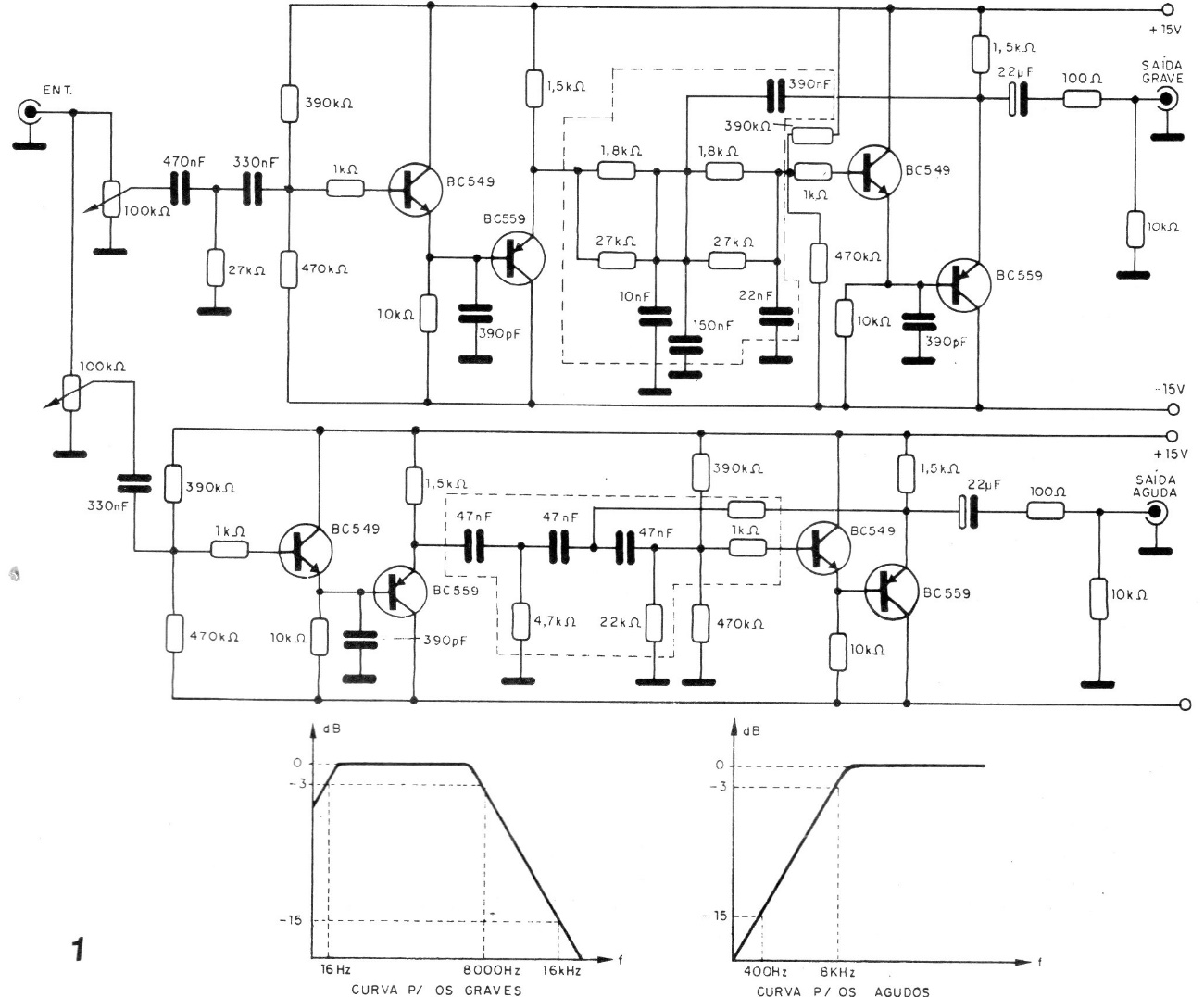

This circuit was found in a 1992 documentation consisting of a two-channel active filter for audio amplifiers. The circuit is critical, and the curves are shown in the same figure. The power supply is given in CB16764E. The circuit requires careful layout and shielding of signal cables.
