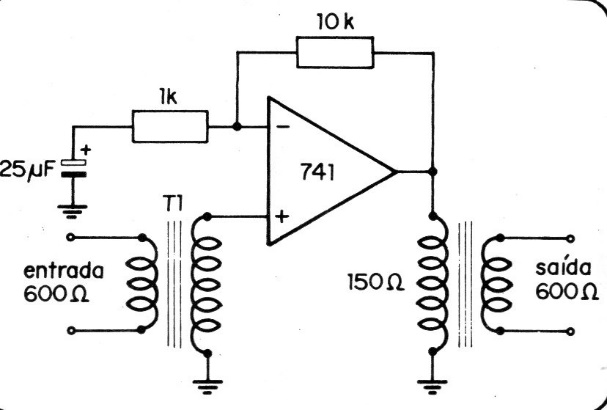

This circuit is a variation of the previous one (CIR9748) having an output of 600 ohms. The T1 transformer is the same as the previous project, but the output has a primary of 150 ohms and a secondary of 600 ohms. The source must be symmetrical from 6 to 12 V and the resistors determine the gain.
