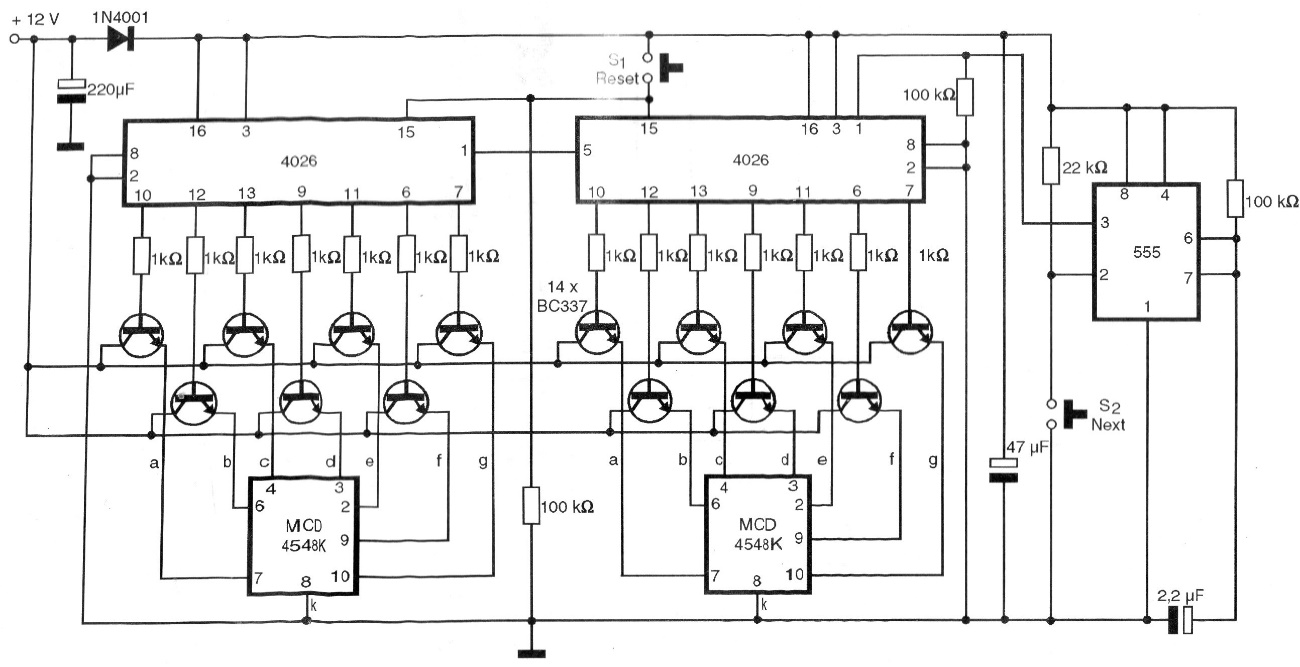

We found this digital scoreboard in a 1998 publication. It has two 7-segment displays, but it can be expanded by repeating the steps. The circuit is powered by a voltage of 12 V and transistors are common for general-purpose. The displays are of the large type of 7 segments with common cathode.
