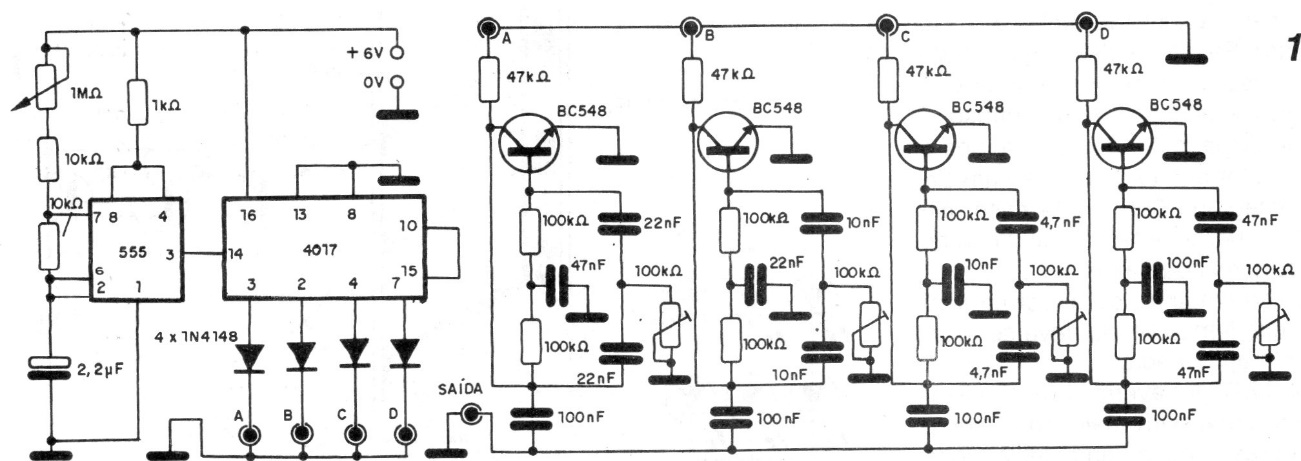

This circuit is from 1995 documentation. It consists of a battery of 4 instruments driven sequentially by a 4017. Each instrument has its sound adjusted in a trimpot or potentiometer. The circuit output must be connected to the input of a good amplifier. The circuit is powered by a voltage of 6 V coming from a power source or battery.
