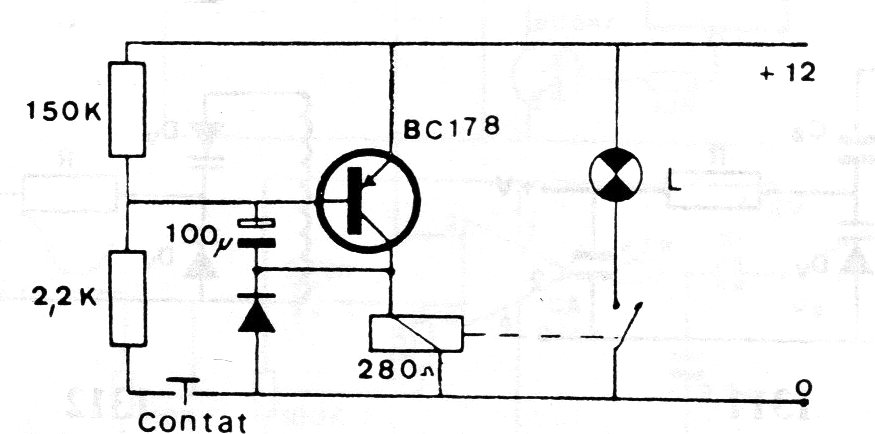

In this circuit, the relay remains closed by activating a lamp, for a time that depends on the capacitor value. For relays up to 100 mA, BC548 transistors can be used. The capacitor can be changed to values up to 2 200 uF.
| Clique na imagem para ampliar |
