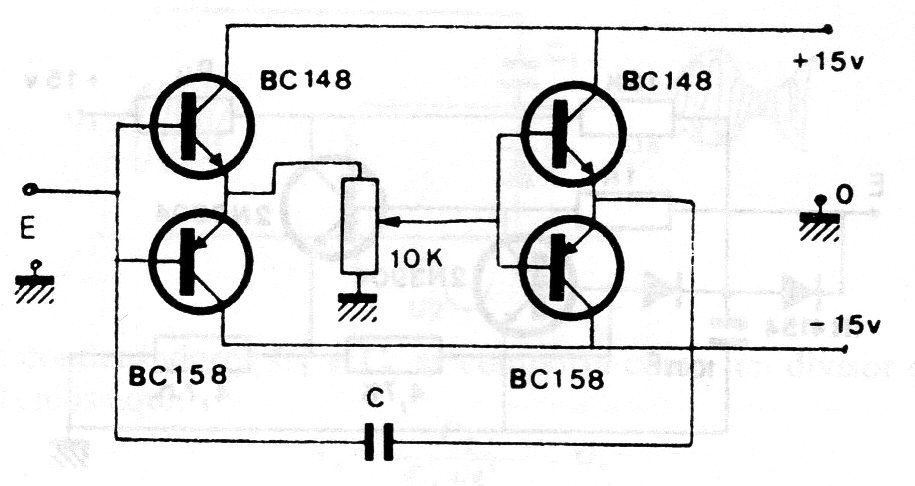

The circuit shown, found in French documentation from the 1970s, functions as a variable capacitor. The capacitance is controlled by a potentiometer in a ratio of 1,000 to 1. The NPN transistors can be BC548 and PNP type BC558. The central value of the capacitance is given by C.
