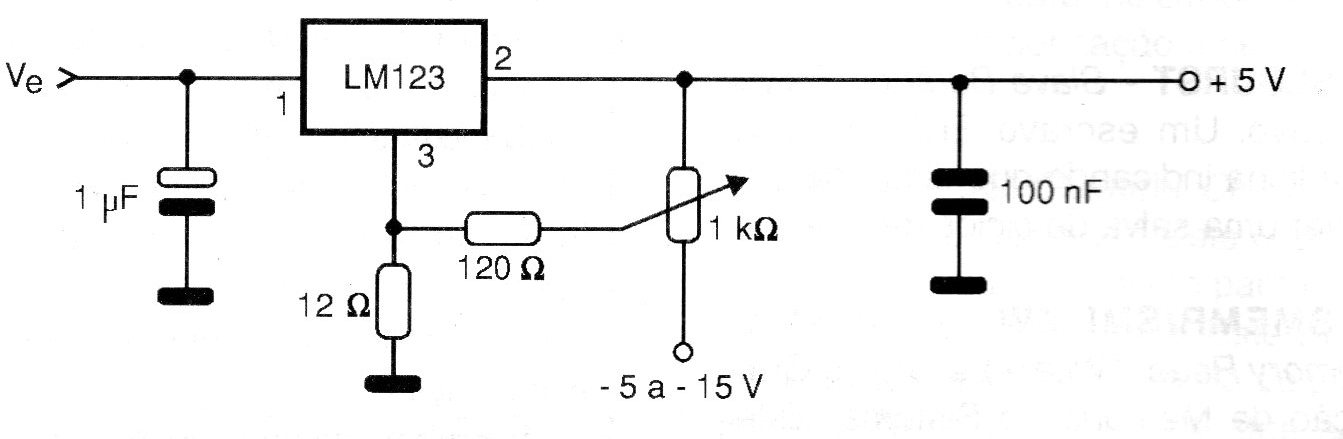

A fine adjustment of the output voltage of a power source is achieved with this circuit, which requires an additional source of negative voltage for polarization. The base is a voltage regulator with 3 terminals LM123 or its equivalents, which must be mounted on a heat radiator. The circuit is suggested by National Semiconductor.
.
