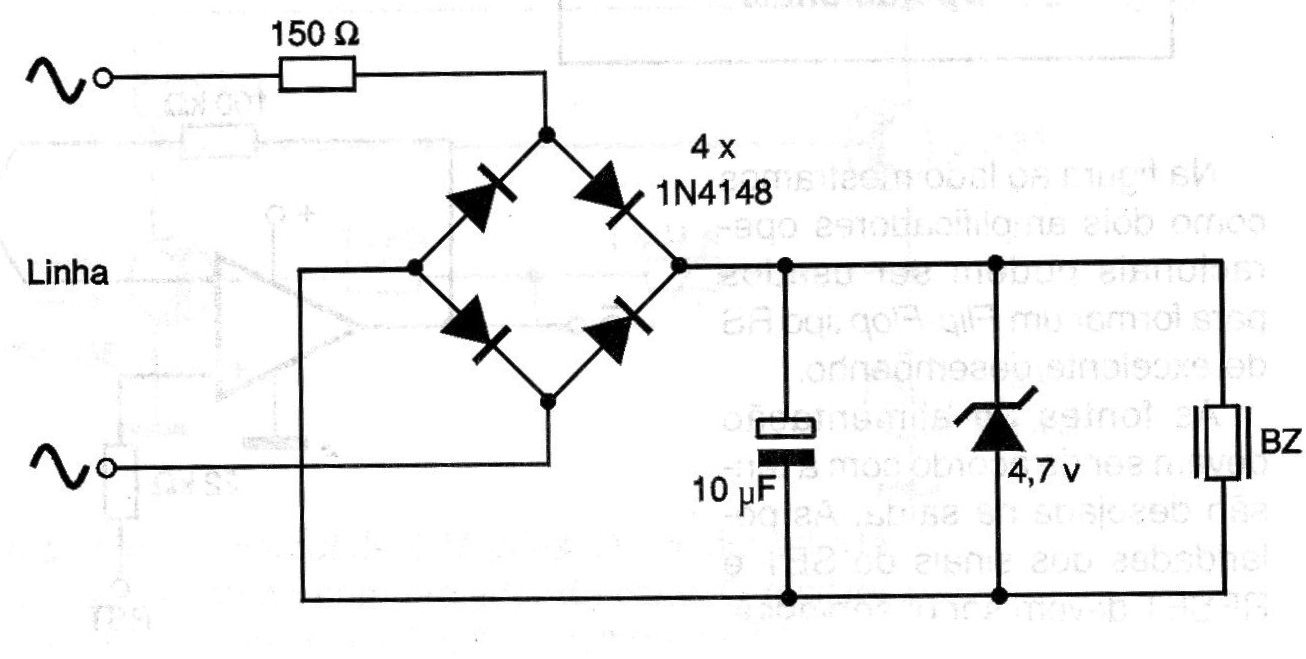

With this circuit it is possible to use a DC buzzer (not a transducer) as an extension of the telephone bell. The diodes can be replaced by equivalents and the zener is 4.7V. The 10uF capacitor must have a working voltage of at least 12 V.
| Clique na imagem para ampliar |
