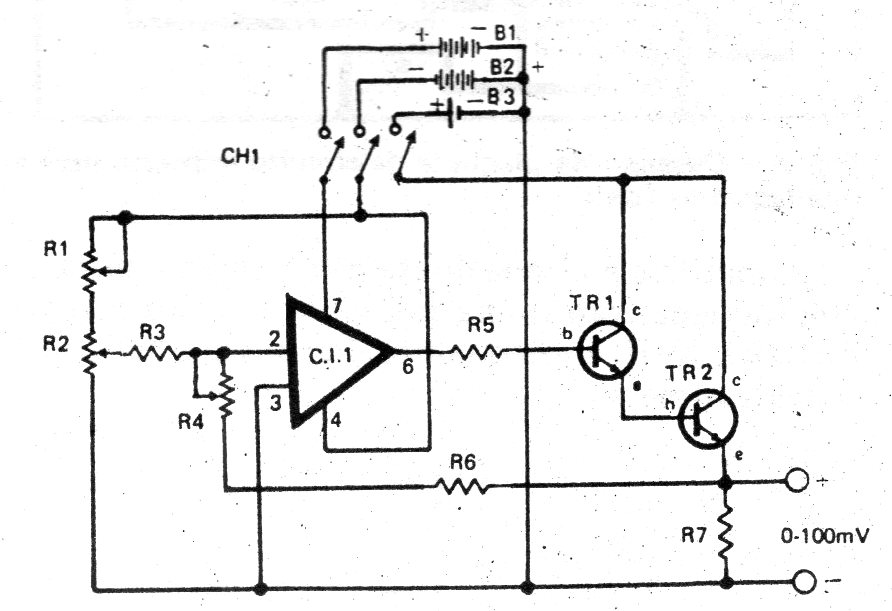

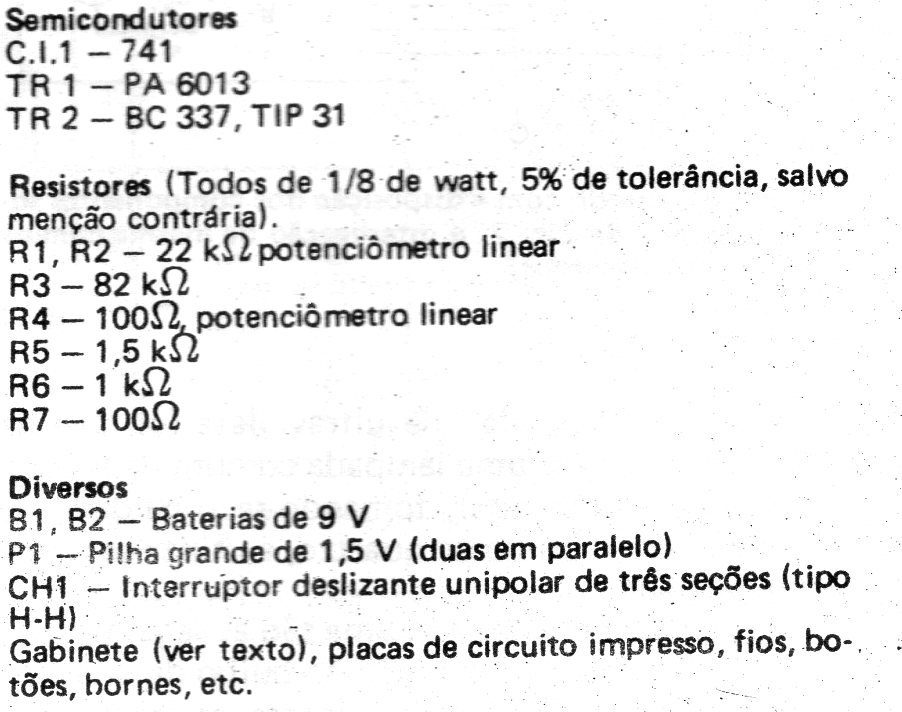

This interesting source of very low voltage for reference finds applications in the instrumentation laboratory for calibration and reference. The circuit is from a publication from the 70s and the transistors used admit modern equivalents such as BC548 for Q1 and BC135 for Q2.
