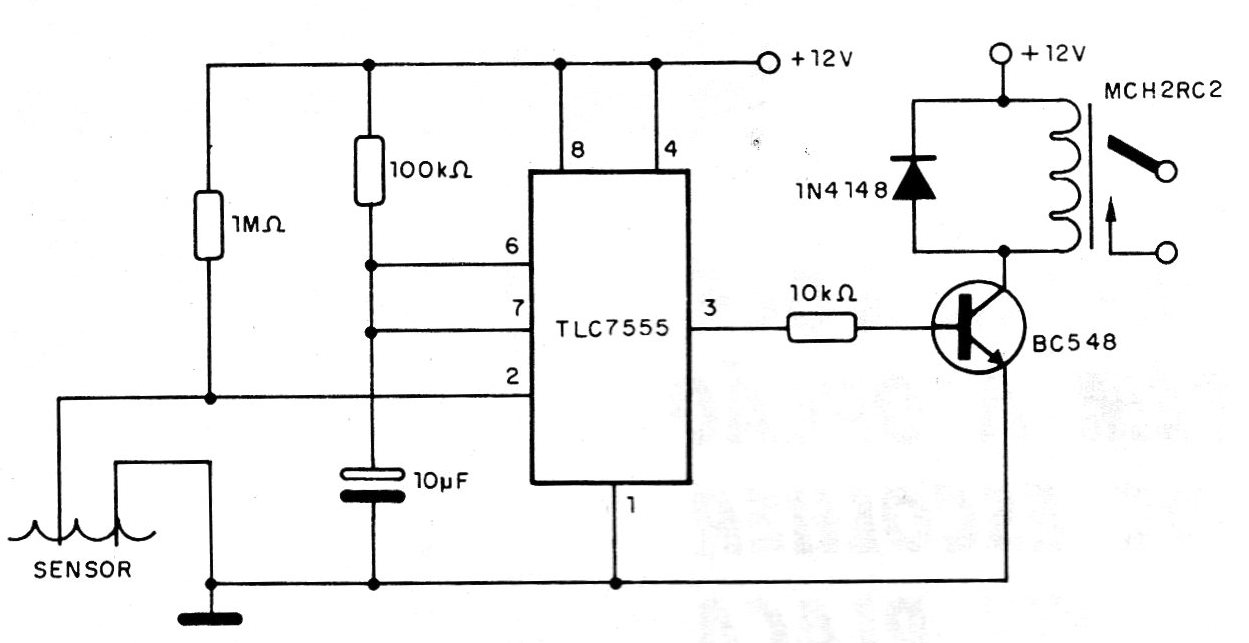

In the figure we have an example of an application of a monostable in which the shot is made by the presence of water that rises in a reservoir, for example. The trigger time can be modified by the components connected to pins 6 and 7.
