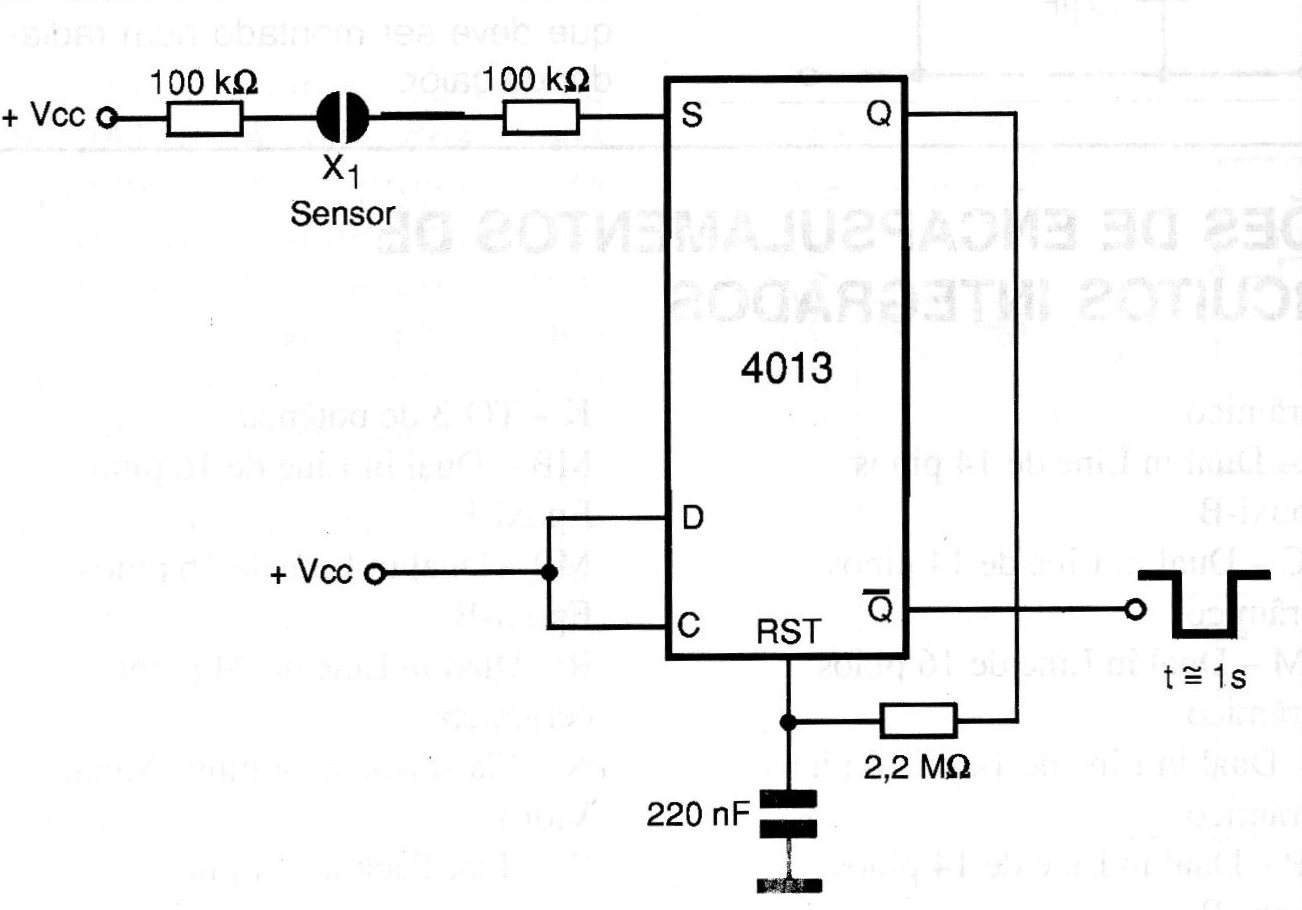

This circuit fires at the touch of a sensor, passing its output from high to low in a time given by the 220 nF capacitor and the 2.2M ohm resistor. We can change these components to obtain the desired time for a given application. The circuit can be supplied with voltages between 3 and 15 V.
