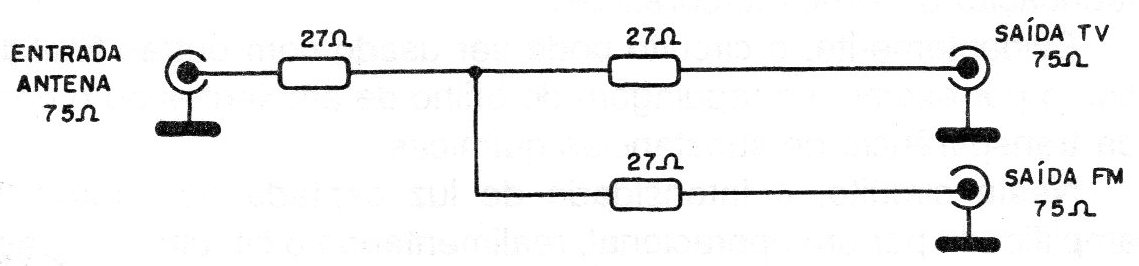

With this circuit, a single antenna can be used to receive TV and FM signals (VHF), separating them for the corresponding receivers. The circuit is suitable for 75: 2 cables. The resistors are 1/8 W or larger, and the circuit must be mounted in a metal box with appropriate connectors.
