NAB Equalization Preamplfier (CB15819E)

Details
Written by: Newton C. Braga

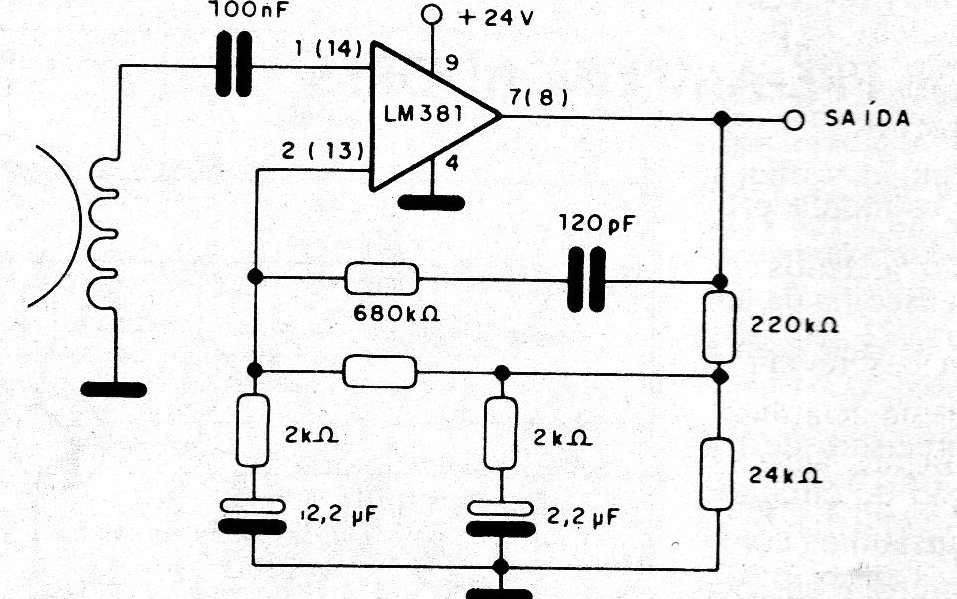

This circuit uses an amplifier from National Semiconductor, uncommon nowadays. The numbers in parentheses are for the second channel. The circuit is suitable for old tape recorders.
