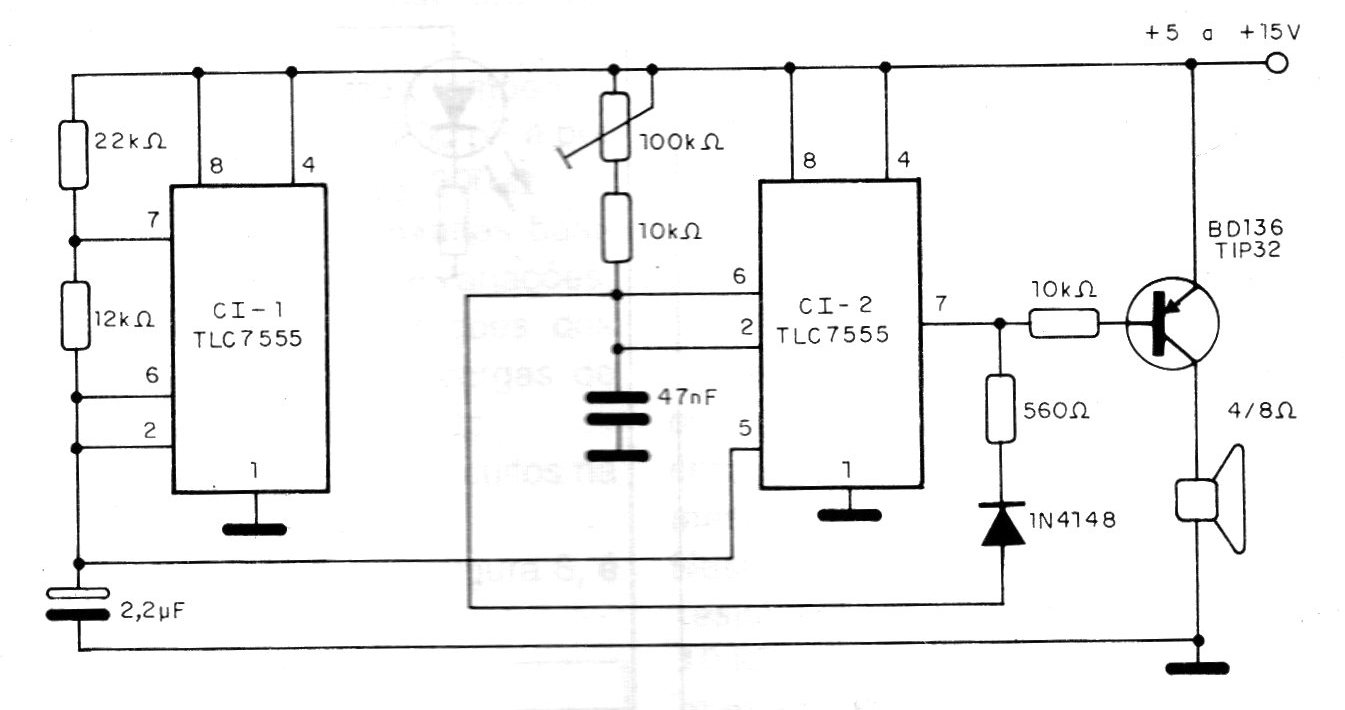

In the figure we have a modulated siren circuit that excites a loudspeaker with good power. If the problem is consumption, the same circuit can have the transistorized phase eliminated, using a ceramic transducer as shown in the CB15865E circuit. Of course, for very high power, a complete multi-watt amplifier can be used as well.
