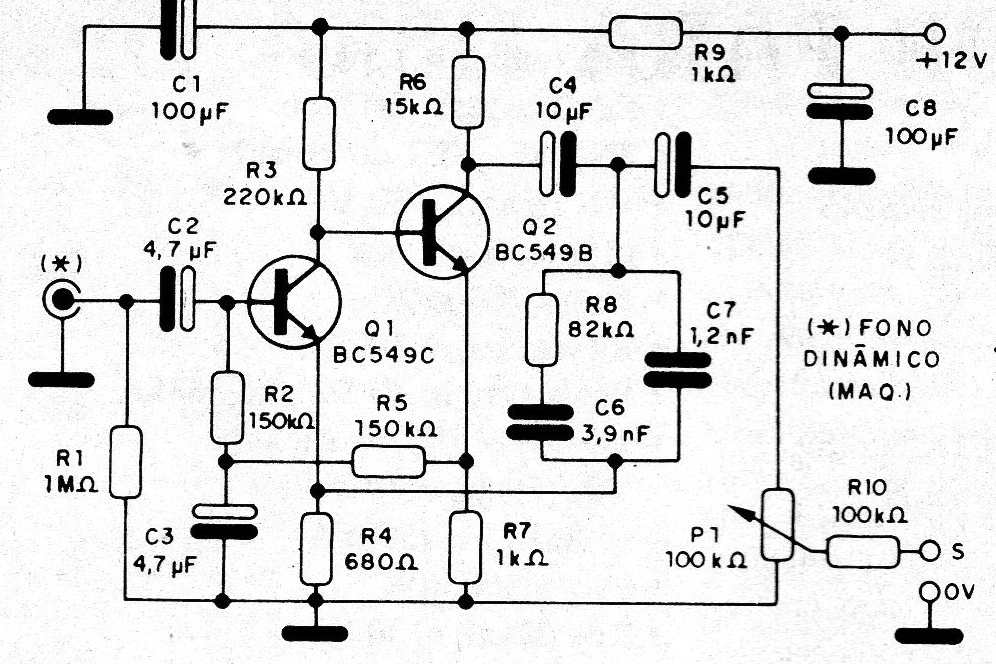

This circuit, suitable for record players with magnetic phonocaptors (pickups), has RIAA equalization and good gain. Its consumption is very low and great care must be taken with the layout of the board and shielding of signal cables.
| Clique na imagem para ampliar |
