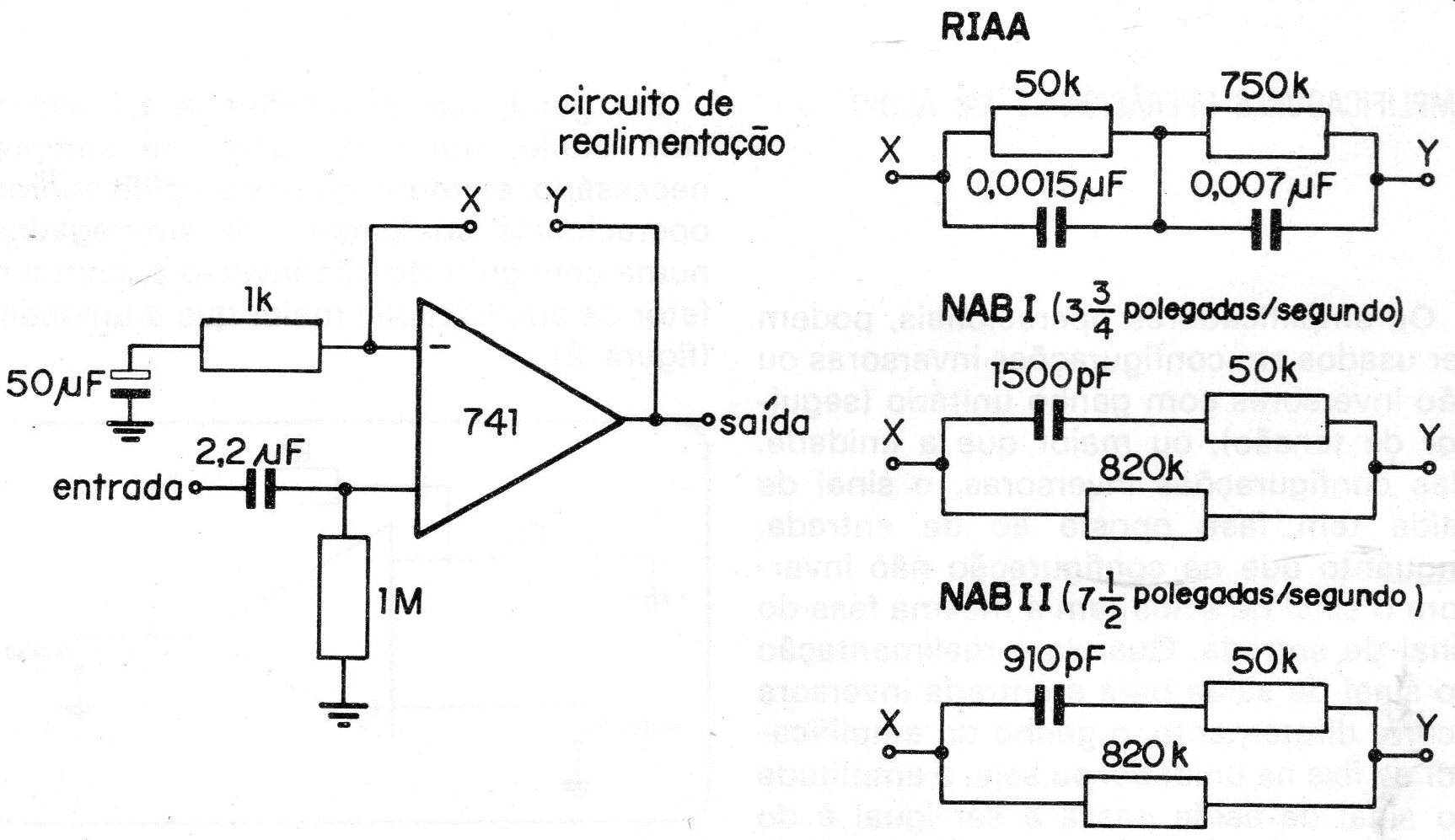

Depending on the feedback network used between points X and X, we have a different behavior for this circuit. It can be used with phonographic capsules, recorder pickups of two types. The circuit must be supplied with a symmetrical source and equivalent operational amplifiers can be used.
