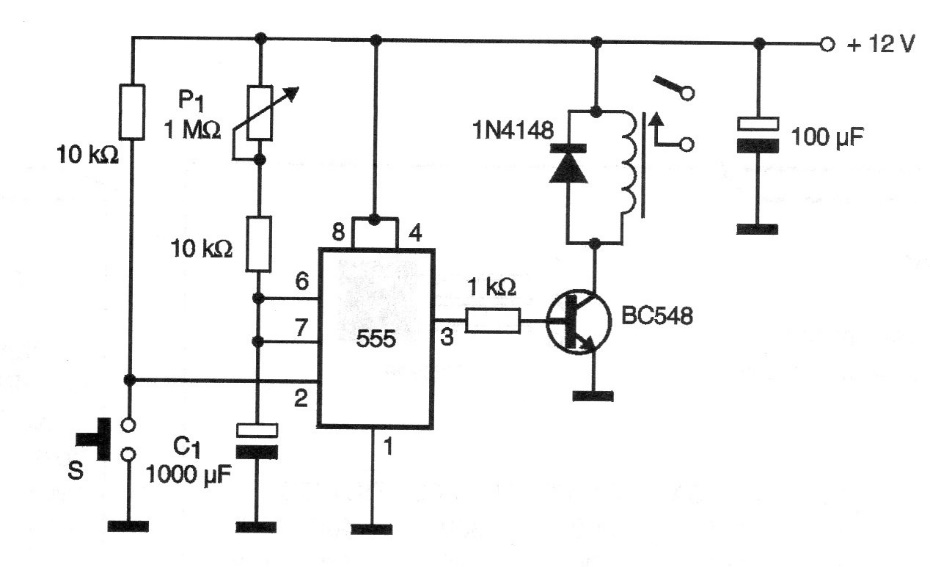

This is one of many timer settings with the 555 found on this site. This is the traditional version found in a 2 000 documentation for 12 V relays. Changing the relay, the circuit also works with 6 V. The C1 time, which can have a maximum value of 2 200 uF for times up to more than 1 hour.
