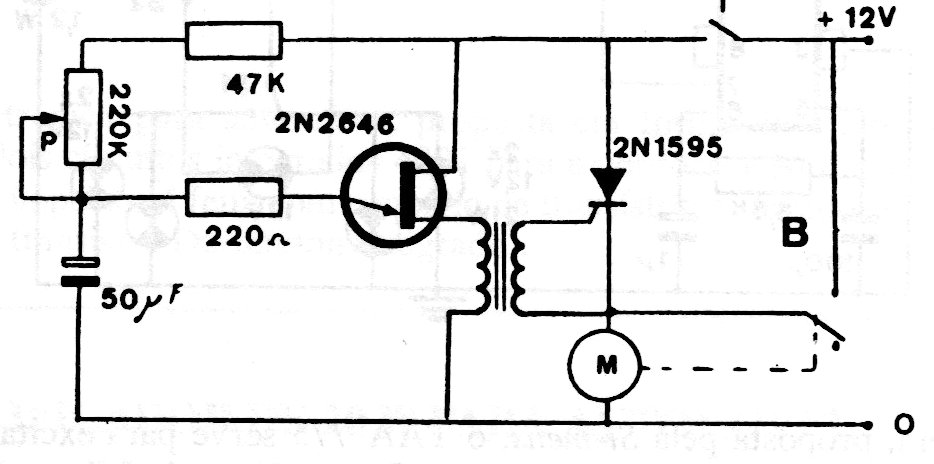

This circuit is from a time when this type of feature was not common in line cars. The pulse transformer has a 1: 1 turn ratio and the SCR admits equivalents.
| Clique na imagem para ampliar |
Timer for Windshield Wiper (CB19869E)
- Details
- Written by: Newton C. Braga
