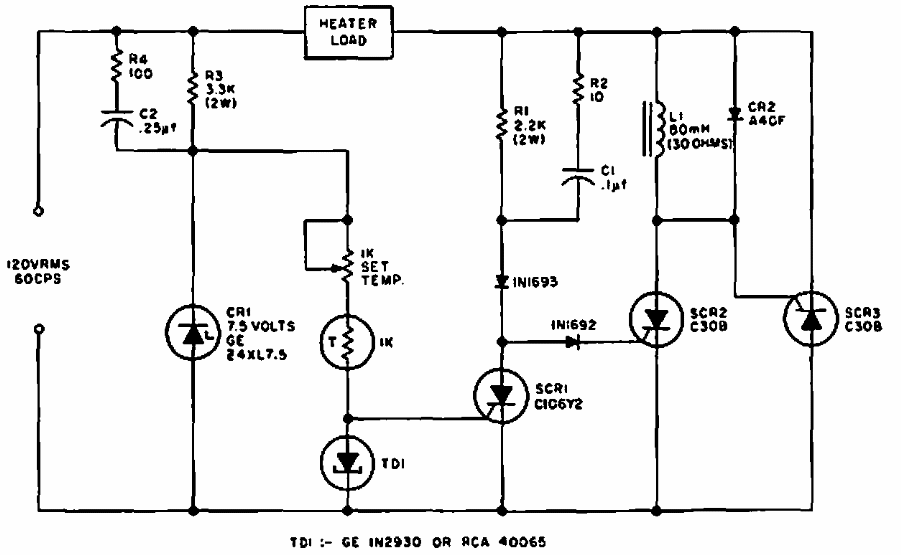

1500W heating control (CB21379E)

This circuit was obtained from a 1967 GE SCR manual. The SCRs must be rated for the wattage of the controlled heating element.
