Foldback current limiter (CB21156E)

Details
Written by: Newton C. Braga

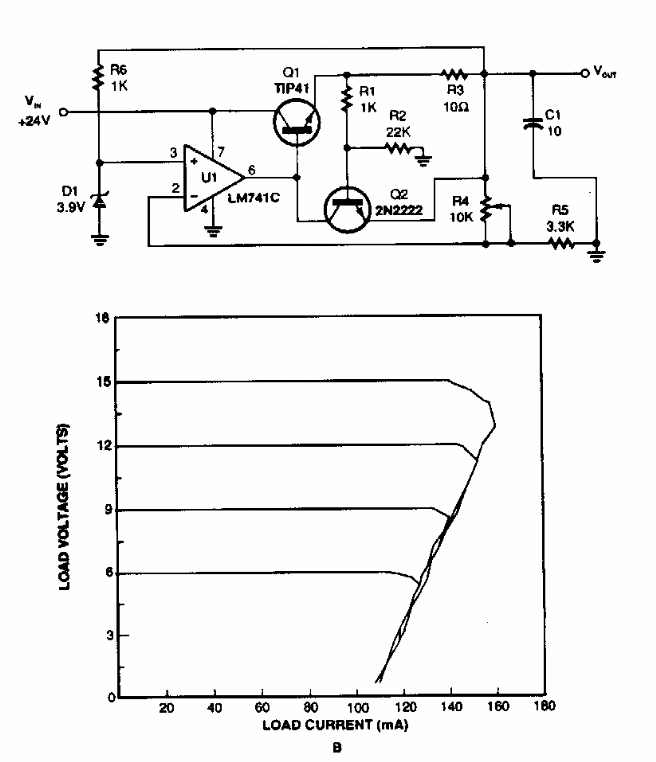

The name of this circuit comes from the appearance of its characteristic curve shown next to the diagram. The circuit was found in a Popular Electronics from the 90s.
