Wien bridge oscillator (CB21121E)

Details
Written by: Newton C. Braga

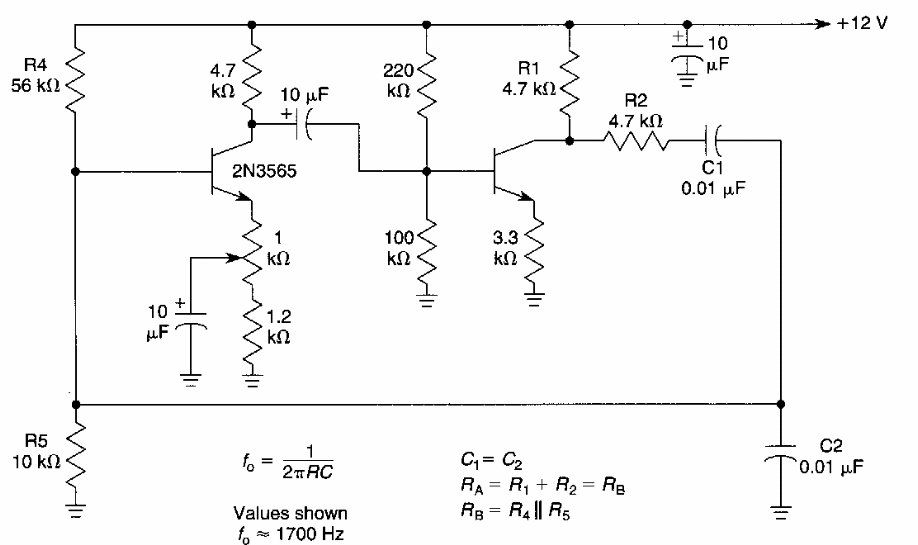

This circuit was found in old American documentation. It is a Wien bridge with the component values calculated by the formulas next to the diagram.
