2 6GHz Oscillator (CB21198E)

Details
Written by: Newton C. Braga

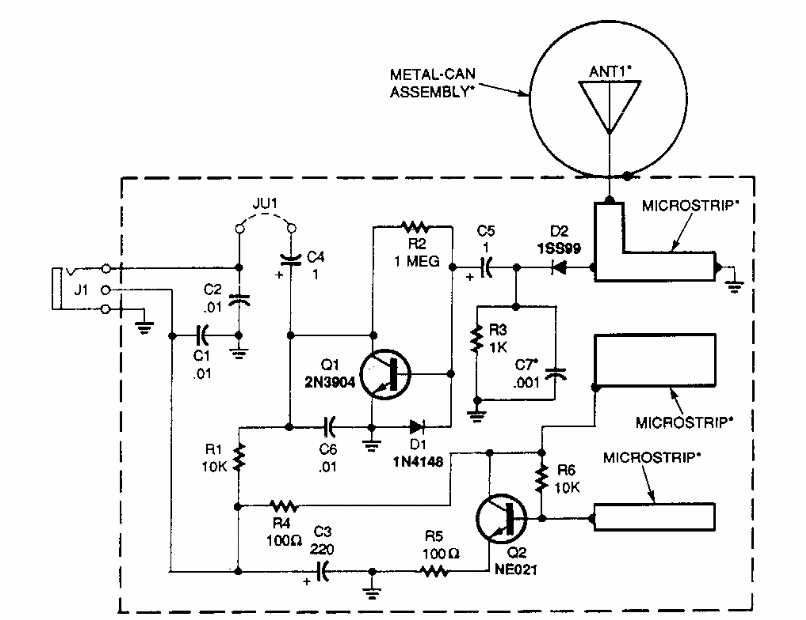

Found in Popular Electronics from the 90s, this circuit is intended for a radar emitting pistol. The circuit is very critical for the frequency at which it operates.
