Astable with active cycle (CB21120E)

Details
Written by: Newton C. Braga

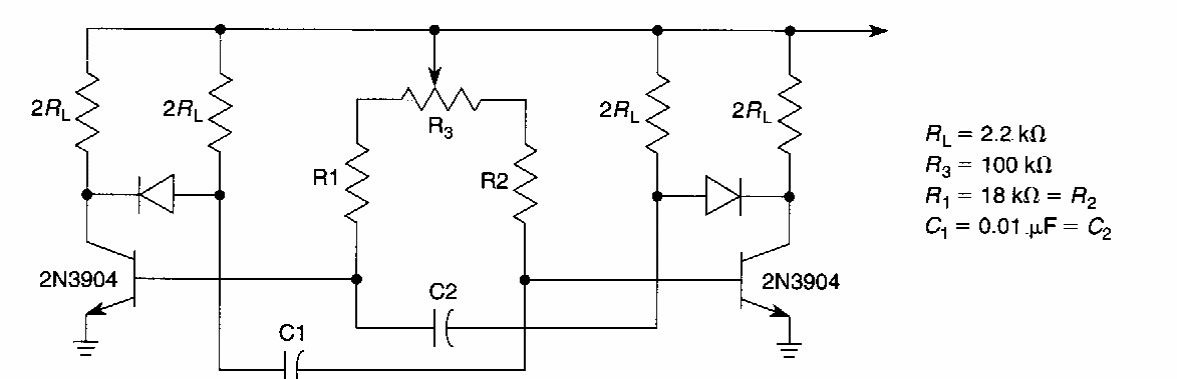

Found in American documentation from the 1990s, this circuit has active cycle control. The basic components are given along with the diagram. Transistors are general purpose.
