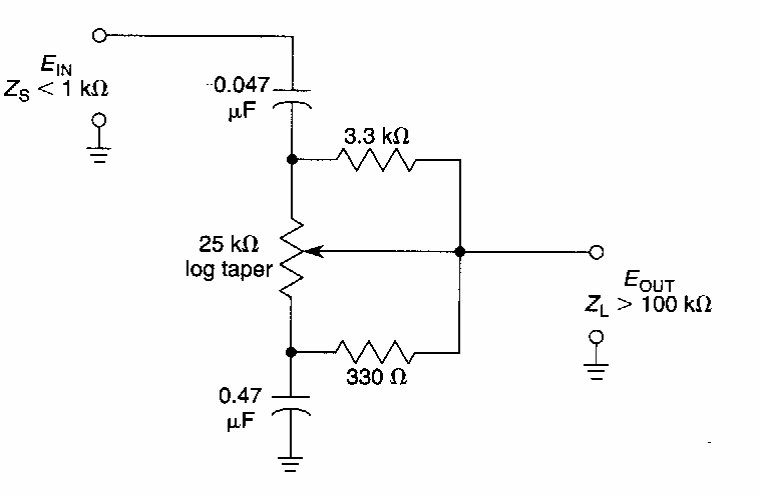

Treble Control (CB21293E)

This passive circuit was found in old American documentation. It can be added to any amplifier input since having losses of 20dB.

| Clique na imagem para ampliar |
