Model contol (CB22185E)

Details
Written by: Newton C. Braga

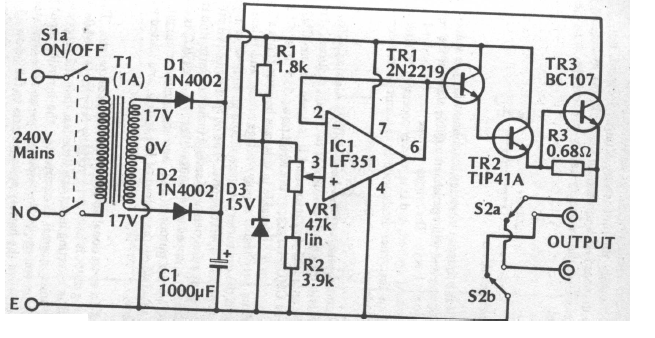

This miniature railway control circuit was found in an English documentation from the 1980s. The integrated circuit is an operational amplifier.
