Logic level indicator 7400 (CB22407E)

Details
Written by: Newton C. Braga

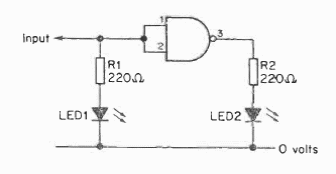

In the figure we have a simple logic level indicator for TTL circuits or powered by 5 V.
