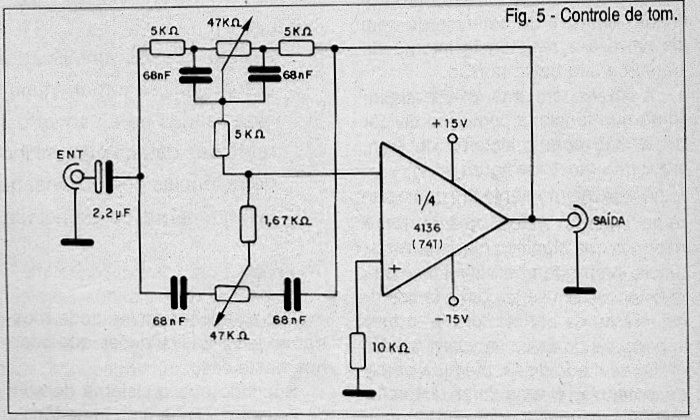

The basis of this circuit is 1/4 of a 4136 integrated circuit which consists of a quadruple 741. We can use the 741 for a mono version, or the original for a stereo version. The power supply must be symmetrical at 15 V and as it is an audio circuit, sensitive to snoring, maximum care is recommended with the layout and signal input and output connections.
