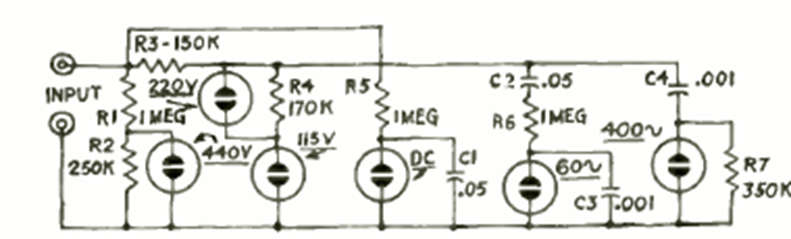

This circuit was obtained from a Radio Electronics in May 1967. The circuit consists of a system that selects the voltage that will light the corresponding neon lamp. The circuit operates up to 440 V.
| Clique na imagem para ampliar |
Neon mains voltage indicator (CB23772E)
- Details
- Written by: Newton C. Braga
