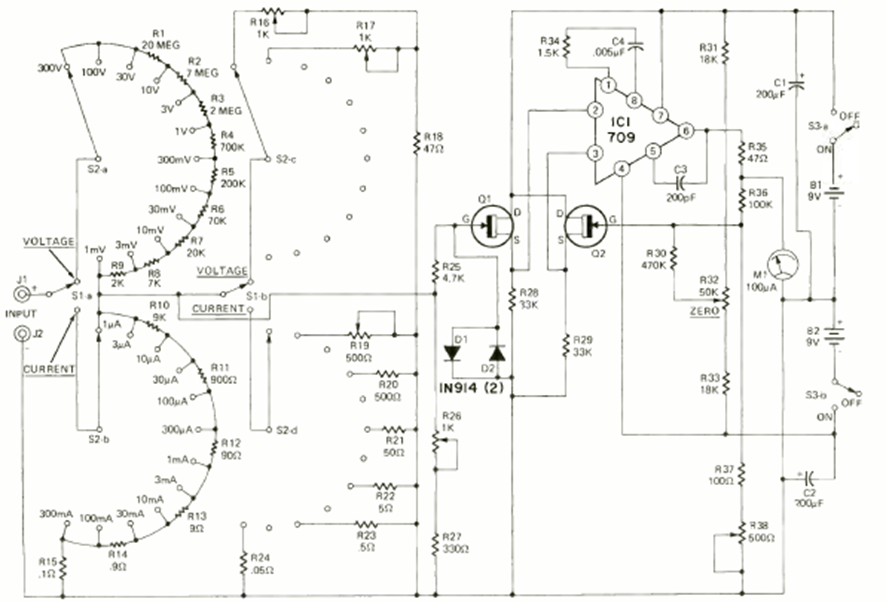

This multimeter with FET and 709 operational amplifier was found in the July 1972 Radio Electronics magazine. The circuit uses two 9 V batteries in a symmetrical source and the indicator is a 100 uA microammeter.
| Clique na imagem para ampliar |
Multimeter with FET and OA (CB24199E)
