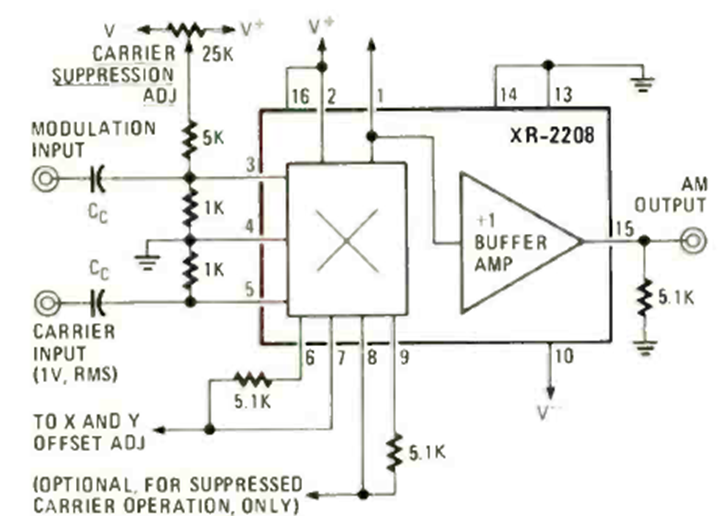

XR2208 AM Modulator (CB24547E)

Details
Written by: Newton C. Braga



We found this circuit in the April 1978 issue of Radio Electronics magazine. The power supply must be symmetrical, and the maximum recommended frequency is around 10MHz.
