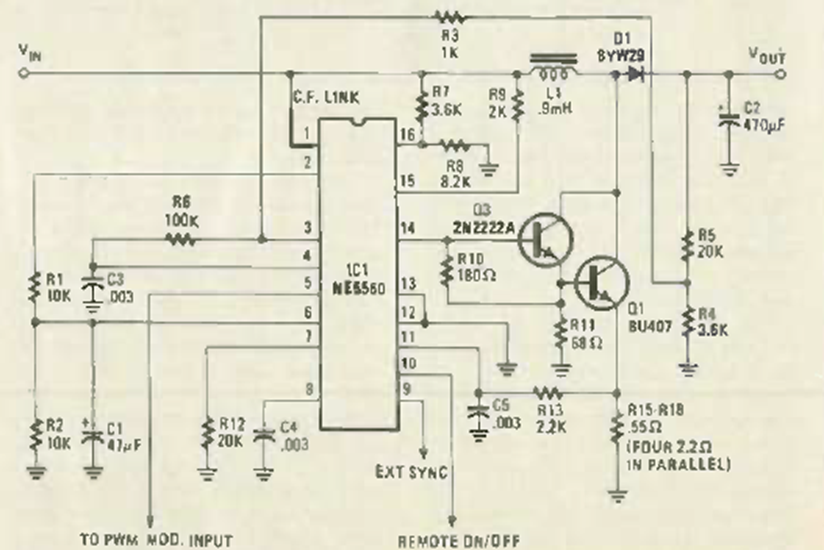

This switching boost regulator, which provides a 24 V output from a 12 V input, was found in the February 1980 issue of Radio Electronics magazine. The power transistor must be provided with a heat sink.
| Clique na imagem para ampliar |
Switching Boost Regulator (CB24610E)
- Details
- Written by: Newton C. Braga
