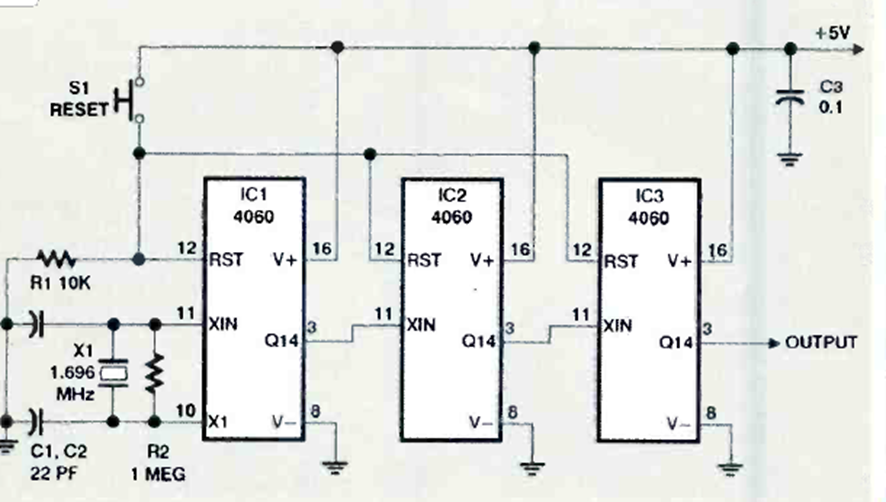

1-cycle-per-30-day oscillator (CB26073E)

This extremely slow circuit produces one pulse per month and can be used in a timer. We found it in the November 1998 Electronics Now magazine.

| Clique na imagem para ampliar |
