Fechner Disk (CB26045E)

Details
Written by: Newton C. Braga

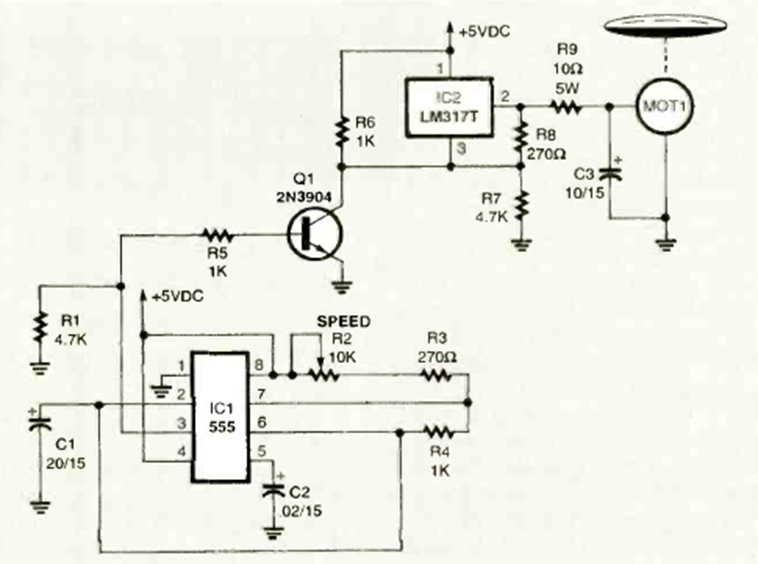

For experiments with a disk rotating at various speeds, the April 1998 Electronics Now magazine suggests this PWM motor control. The current with the LM317 is 1.5A maximum.




| Clique na imagem para ampliar |
