Selection of diode inputs (CB4111E)

Details
Written by: Newton C. Braga

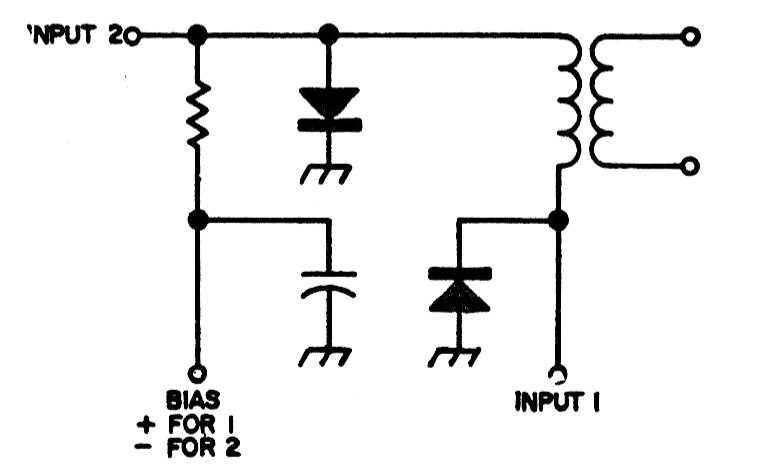

    This circuit is used in transceivers, enabling input selection by diode switching through polarity reversal. The circuit is from an old American documentation on telecommunications.




| Clique na imagem para ampliar |
