High voltage switch (CB6929E)

Details
Written by: Newton C. Braga

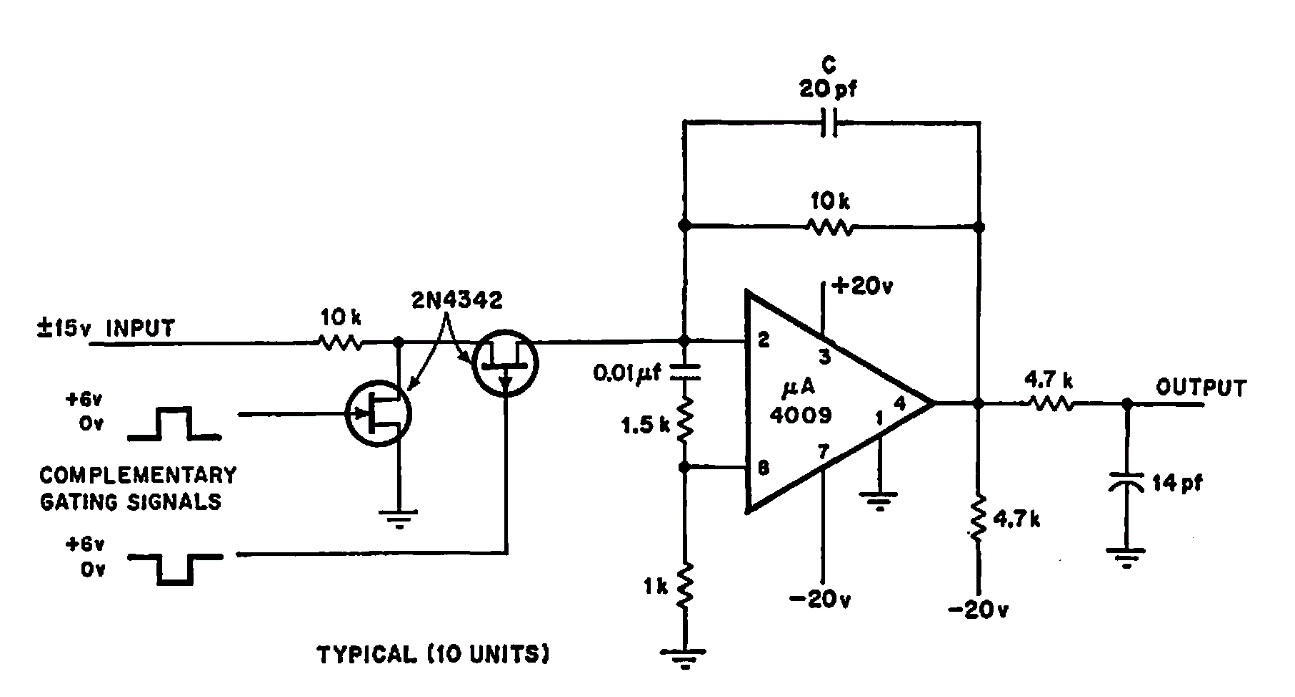

      This circuit, for frequencies up to 100 kHz, was found in American documentation from 1970. The circuit can serve as a reference for projects with modern equivalent components.
