DC Low Level Amplifier (CB6460E)

Details
Written by: Newton C. Braga

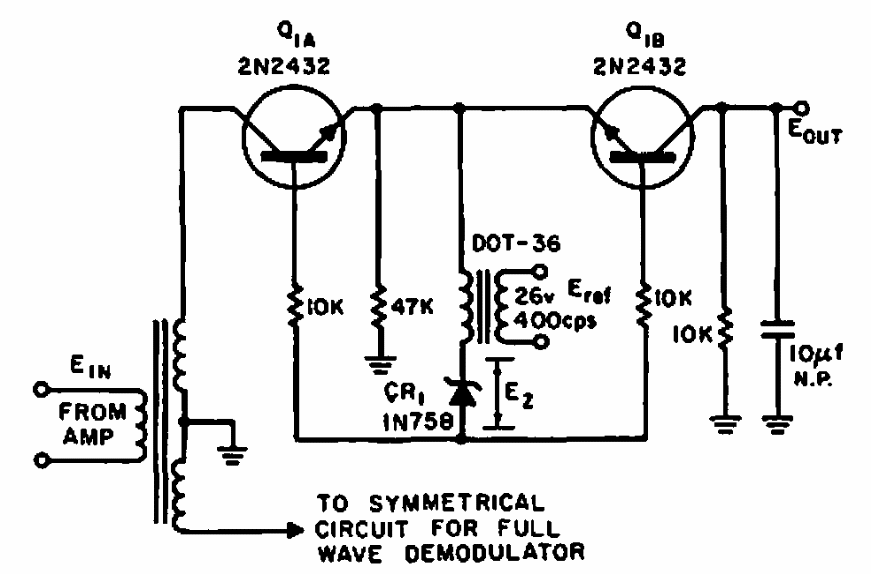

     This circuit was found in a 1965 US documentation. The circuit converts a DC signal to a 400 Hz AC signal. Transformer data was not provided.
